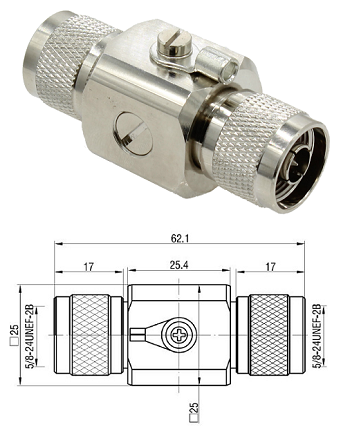

N Type Male/Male GDT Lighting Arrester 230v

(Code: 220-640-917-230V)
 Add to Enquiry List
N Type Male/Male GDT Lighting Arrester 230v Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Brass, CuSnZn3 alloy
Insulator - PTFE
Gas Discharge Tube - 230V±20%

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - 0.8-2.5GHz
Dielectric Withstanding Voltage - 2500V (RMS)
Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 1mΩ
Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics
Mating - 5/8”-24UNEF-2B
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 40°C to +85°C
