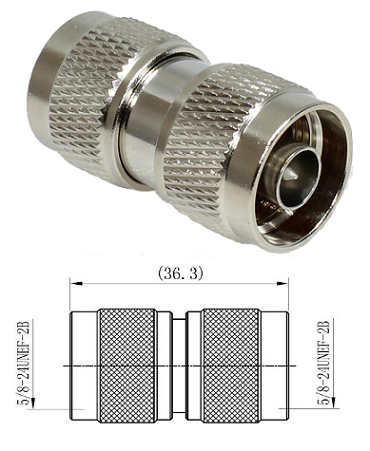

N Type Plug/Plug Adaptor

Materials & Plating

Shell/Body - Brass, Tri-alloy

Center Conductor - Tin-Phosphor Bronze, Gold Plated

Insulator - PTFE

Other - Brass, Nickel Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

VSWR - VSWR≤1.10

PIM - ≤-150dBc

Insertion Loss - ≤0.1dB

Dielectric Withstanding Voltage - ≤2.5kV rms, 50Hz

Dielectric Resistance -≥5000MΩ

Contact Resistance Resistance - outer contact ≤0.25mΩ; center contact ≤1mΩ

Mechanical Characteristics

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C
