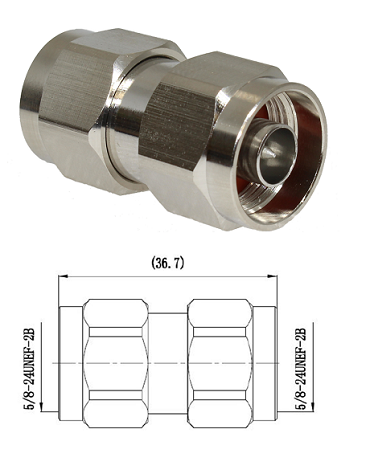

N Type Plug/Plug Straight Adaptor (Hex)

Materials & Plating

Body - Brass, Tri-Alloy

Center Conductor - Tin-phosphor Bronze, Gold Plated

Insulator – PTFE

Other – Brass, Nickel Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

VSWR- VSWR≤ 1.10

PIM - ≤-160dBc

Insertion Loss - ≤0.1dB

Dielectric Withstanding Voltage - ≤2.5kV rms, 50Hz

Insulation Resistance - ≥ 5000mΩ

Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 2.5mΩ

Mechanical Characteristics

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to  +85°C
