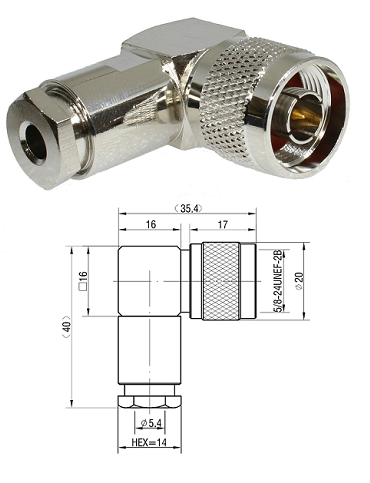

N Type Right-Angled Clamp Plug RG58

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 2500V (RMS)

Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 1mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - 5/8"-24UNEF-2B

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C
