N Type Right-Angled Crimp Plug LMR200

(Code: 220-1520-070)
 Add to Enquiry List

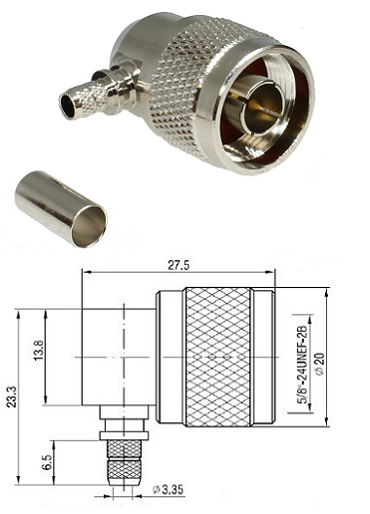

N Type Right-Angled Crimp Plug LMR200

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - PTFE



Electrical Characteristics

Impedance - 50Ω

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 2500V (RMS)

Contact Resistance - Centre 1mΩ, Outer 1mΩ

Insulation Resistance - 5000mΩ​​​​​​​



Mechanical Characteristics

Mating - 5/8"-24UNEF-2B

Durability - 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C



Assembly

Pin: Solder

Outer: 5.41mm hex
