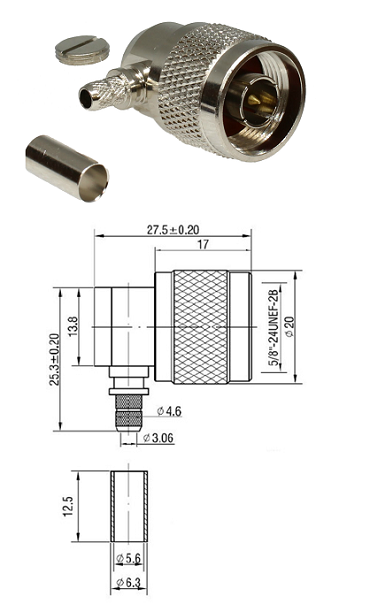

N Type Right-Angled Crimp Plug RG223

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - PTFE



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 2500V(RMS)

Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 11mΩ

Insulation Resistance - ≥ 5000mΩ



Mechanical Characteristics

Mating - 5/8-24UNEF-2B

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 55°C to +155°C

Assembly

Pin: Solder

Outer: 5.41 mm hex
