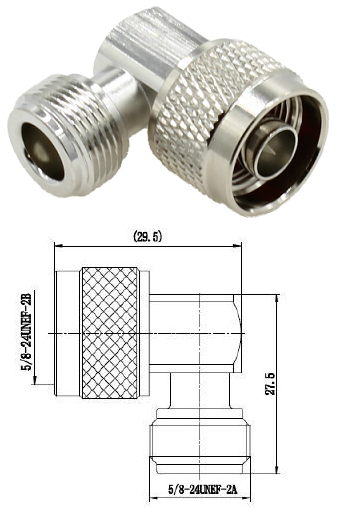

N Type Right-Angled Plug/Jack Adaptor

Materials & Plating

Shell/Body - Brass, Nickel Plated or Tri-Alloy

Insulator - PTFE

Center Conductor - Phosphor Bronze, Gold Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

VSWR - ≤1.10

Dielectric Withstanding Voltage - 1500V (RMS) at sea level

Insulation Resistance - ≥ 5000mΩ

PIM(2*20W) - ≤-160dBc

Mechanical Characteristics

Mating - 7/16-28UNEF-2B

Durability - ≥ 500 cycles


Environmental Characteristics

Temperature Range: - 40°C to +85°C
