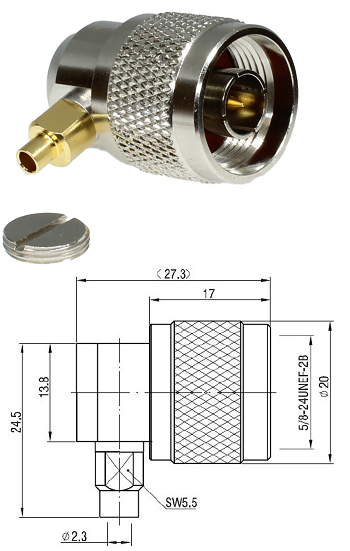

N Type Right-Angled Solder Plug RG405 / 0.85 (Semi-Rigid)

Materials & Plating

Shell/Body - Brass, Nickel/CuSnZn

Contact Pin - Brass, Gold Plated

Insulator - PTFE



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC- 4GHz

Dielectric Withstanding Voltage - 2500V (RMS)

Contact Resistance - Center conductor ≤ 1mΩ, Outer conductor ≤ 1mΩ

Insulation Resistance - 5000mΩ



Mechanical Characteristics

Mating - 5/8-24UNEF-2B​​​​​​​

Durability - ≥ 500 cycles​​​​​​​



Environmental Characteristics

Temperature Range: - 40°C to +85°C

Assembly
