N Type RP Crimp Plug LMR400

Materials & Plating

Shell/Body - Brass, Nickel Plated

Contact Socket - Phosphor Bronze, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 6GHz

Dielectric Withstanding Voltage - 2500V (RMS)

Contact Resistance - Centre ≤ 1mΩ, Outer ≤ 1mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - 5/8-24UNEF-2B

Durability - ≥500 cycle

Environmental Characteristics

Temperature Range: -  55°C to +155°C

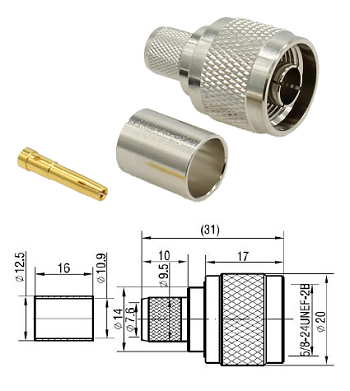

Assembly

Pin: 3.25 mm hex

Outer: 10.9 mm hex
