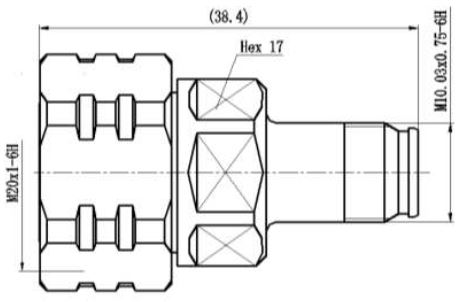

NEX10 Female to 4.3/10 Male

Materials & Plating

Body - Brass, Tri-Alloy

Insulator - PTFE

Centre Conductor - Brass, Gold Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

VSWR - ≤1.10

PIM ( @2-tonex20w) - ≤-160dBC

Insertion Loss - ≤0.05*√fdB

Dielectric Withstanding Voltage - ≥750V RMS,50Hz, at sealevel

Dielectric Resistant - ≥5000MΩ

Contact Resistance - Centre ≤ 2.5mΩ, Outer ≤ 3.0mΩ

Mechanical Characteristics

Durability - Mating ≥ 100 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C

RoHS-compliance - Full RoHS compliance

Salt-fog test - 96h
