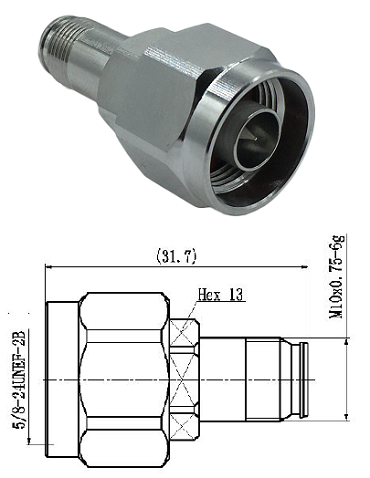

NEX10 Female to N Type Male Adapter

Materials & Plating

Body - Brass Phosphor Bronze, Tri-Alloy/Silver Plated

Insulator - PTFE

Centre conductor - Phosphor Bronze, Silver Plated
Other - Brass, Tri-Alloy

Electrical Characteristics

Characteristic Impedance- 50 ohm

Frequency Range - DC-6GHz

VSWR - ≤1.10  (DC-6GHz)

PIM (@2-tonex20w) - ≤155dBC

Insertion Loss - ≤0.05*√fdB

Dielectric Withstanding Voltage- ≥1500VRMS, 50Hz,at sea level

Dielectric Resistance - ≥5000M Ω

Mechanical Characteristics

Durability - ≥ 100 Mating cycles

Environmental Characteristics

Temperature Range: -40℃～+85℃

Rosh-compliance - Full ROHS compliance

Salt-fog test - 96h
