OTDR Dead Zone Eliminator

(Code: OTDR)
Add to Enquiry List

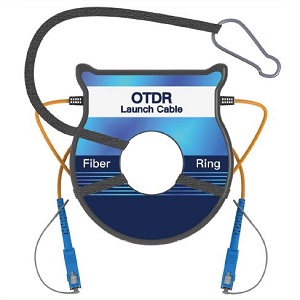

OTDR Dead Zone Eliminator

Features and Application

• Compact,
rugged, lightweight

• 150, 500, and 1000 m lengths standard

• Available with a variety of connector styles

• Compact! Fits easily in OTDR cases or kits

• Adapters special storage bin design
• For use as OTDR launch cable

• For use as OTDR receive cable

• Measure insertion loss and reflectance of near- and far-end connections of a fiber optic link using an OTDR

• Use to test link loss with an OTDR



Testing, Inspection and Location



OTDR optical fiber launch cable is used to measure the loss and reflectivity of the proximal connection and the remote non-corrupt insertion of the optical fiber line using OTDR. Each OTDR launch cable can be used as an OTDR transmitting and receiving cable, both of which were necessary to eliminate blind spots when measuring the complete line loss of the optical fiber with OTDR. OTDR launch cable adopts coiled design, easy to carry, compact and light Various length options, very suitable for short, medium long distance fiber network test applications.

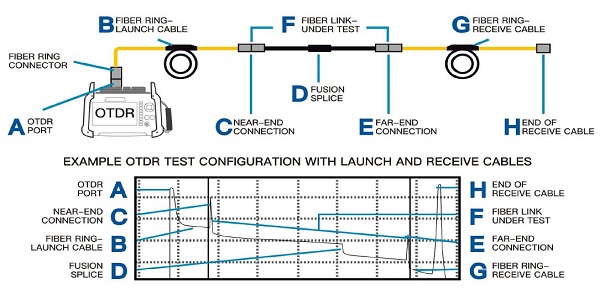

How to Generate a Baseline Trace Using Fibre Rings

• Use the Fibre Ring as a launch cable. Connect the Fibre Ring between your OTDR and the fibre link under test. This will allow you to measure the loss of the near-end connection.

• Use the Fibre Ring as a receive cable. Connect the Fibre Ring to the far-end connector of your fibre link under test. This will allow you to measure the loss of the far-end connection.

By using the jump cable as a transmitting and receiving cable You can measure the total insertion loss of the fiber link

Model Configuration Fiber Type Length

OS2-150M, 9/125um

 Standard Coupler  Single Mode  150m
OS2-300M, 9/125um  Standard Coupler   Single Mode  300m

OS2-500M, 9/125um

 Standard Coupler   Single Mode  500m
OS2-1KM, 9/125um  Standard Coupler   Single Mode 1km
OM1-500M,  62.5/125um  Standard Coupler   Single Mode  500m
OM1-1KM, 62.5/125um  Standard Coupler   Single Mode 1km
OM2-500M, 50/125um  Standard Coupler   Single Mode 500m
OM2-1KM, 50/125um  Standard Coupler   Single Mode 1km
OM3-100M, 50/125um  Standard Coupler   Single Mode  100m
OM3-300M 50/125um  Standard Coupler   Single Mode  300m
