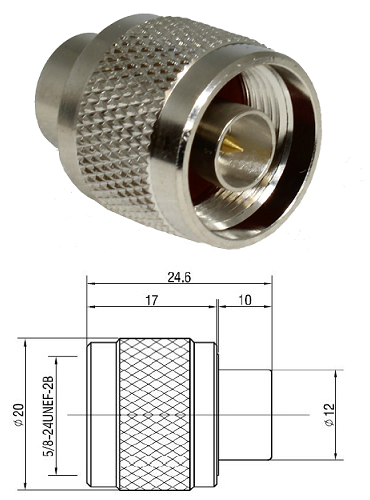

Plug Termination 1W

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Phosphor Bronze, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3 GHz

Dielectric Withstanding Voltage - 2500V(RMS)

Contact Resistance - Centre conductor  ≤ 1mΩ, Outer conductor  ≤ 1mΩ

Insulation Resistance - ≥ 5000mΩ

Power - 1W

VSWR - ≤ 1.15

Mechanical Characteristics

Mating - 5/8-24UNEF-2B

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: -40°C to +85°C
