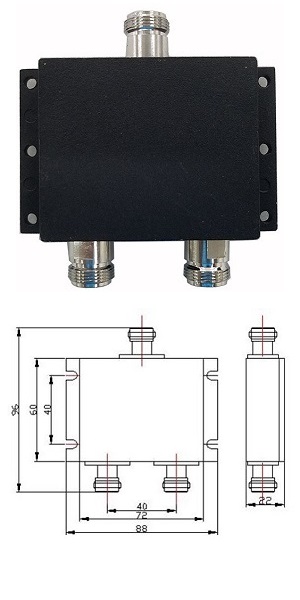

Power Splitter (698-2700MHz 50W, N-Female 2-Way)

(Code: MPS-727-02N)
 Add to Enquiry List
Power Splitter (698-2700MHz 50W, N-Female 2-Way)Application
In-Building Wireless System and BTS

Features
■ High Quality, Low Price, Fast Delivery
■ Low VSWR, Low insertion, Insertion Loss, High Isolation

Technical Specification
 Frequency (MHz)  698-2700MHz
 Insertion Loss (dB)  ≦3.5
 Isolation (dB)  ≦20
 VSWR

 ≦1.30.1
 Power Capacity (W)  50watt
 Impedance (ohm)  50Ohm
 RF Connector  N-Female
 Application  Indoor
 Operating Temp (ºC)  -35ºC~+60ºC
 Colour  Black Plated
 Material  Aluminium
 Relative Humidity  5%-95%
