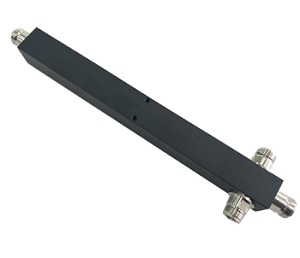

Power Splitter 698-2700MHz (High Power Square 3-Way)

(Code: MPS-727-03-NF)
 Add to Enquiry List
Power Splitter 698-2700MHz (High Power Square 3-Way)Product Features

■ Wide Frequency Band 698-2700MHz

■ 2G/3G/4G/LTE/5G Coverage

■ Low VSWR & Insertion Loss

■ Indoor or Outdoor Application IP65

■ Widely used for In-building Solutions

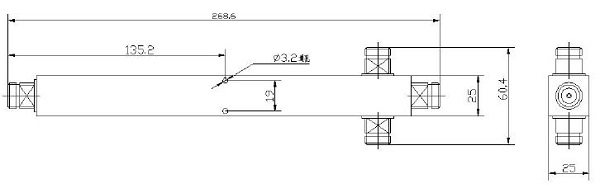

 Technical & Mechanical Specification
 Model No.
  MPS-727-03-NF
 Freq(MHz)  698-2700
 Input Port Number  1
 Output Port Number  3
 Split Loss(dB)  4.8
 IL(dB)  ≤0.4
 VSWR  ≤1.20
 PIM3(dBc@2*43dBm)  ≦-150@2x43dBm
 Total Input Power(W)  300
 Impedance  50 ohm
 Connector  N-Female
 Color/Weight  Black
 Temp(deg)  -30~+65
 Application  Indoor or Outdoor IP65
 Relative Humidity  5%-95%
 Net Weight (kg)  0.45
