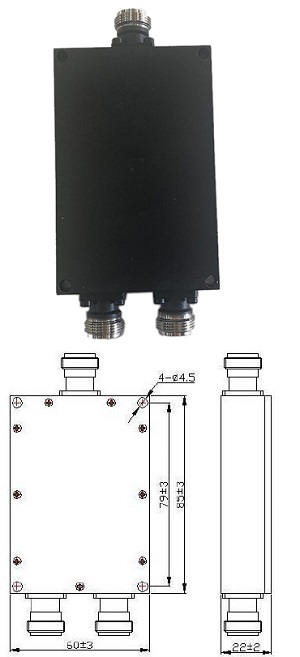

Power Splitter (698-4000MHz, 50W, IP65)

(Code: MWPS-740-02-NF)
 Add to Enquiry List
Power Splitter (698-4000MHz, 50W, IP65)
Features
■ Wide Frequency Band 698-4000MHz
■ Tetra/2G/3G/4G/LTE/5G Coverage
■ Low Passive Intermodulation
■ Low VSWR & Insertion Loss
■ Indoor Outdoor Application IP65
■ Widely use for In-building Solution

Technical Specification
 Frequency (MHz)  698-4000
 Split Loss (dB)  3.0
 Insertion Loss (dB)  ≦1.7
 Isolation  (dB)  ≦18
 VSWR

 ≦1.45
 Pim3(dBc  ≦-150@2x43dBm
 Power (W)  50(average)
 Impedance  50 ohm
 Connector  N-female
 Colour  Black
 Temp (deg)  30ºC~+70
 Application  Indoor or Outdoor, IP65
