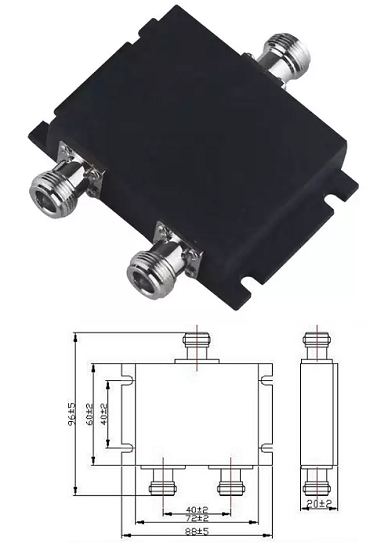

Power Splitter (UHF 300-500MHz, 50W, N-Female 2 Way)

(Code: YFPS-350-02-NF)
 Add to Enquiry List
Power Splitter (UHF 300-500MHz, 50W, N-Female 2 Way)


Product Features


• Wide Frequency Band 300-500MHz

• Low VSWR

• Low Insertion Loss

• Widely used for In-building Solutions



 Technical & Mechanical Specifications
 Model No.  YFPS-350-02-NF
 Freq(MHz)  300-500
 Input Port Number  1
 Output Port Number  2
 Split Loss(dB)  3.0
 IL(dB)  ≤0.6
 Isolation (dB)  20min
 VSWR  ≤1.30
 Total Input Power(W)  50
 Impedance  50 ohm
 Connector  N-Female
 Colour  Black
 Temp(deg)  -30~+70
 Weight(kg)  0.24
