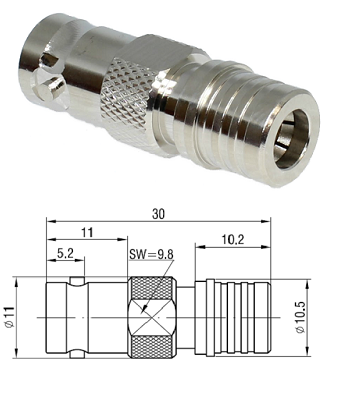

QMA Male to BNC Female Adaptor

(Code: 290-5044-070)
Add to Enquiry List
QMA Male to BNC Female Adaptor

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Phosphor Bronze, Gold Plated

Insulator - PTFE


Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 2GHz

Dielectric Withstanding Voltage -1000V (RMS)

Contact Resistance - Centre ≤ 6mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating -  QSMA: Snap-on coupling BNC: bayonet lock

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: -  55°C to +155°C
