RG11 Cable White LSZH

(Code: 101-490002F/WHT)
Add to Enquiry List

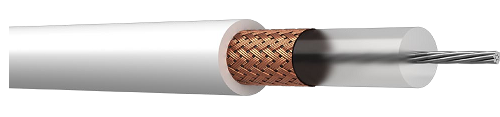

RG11 Cable White LSZH

Product Construction
Conductor Material
Tinned Copper
Conductor Stranding
Stranded, 7/0.40mm
Dielectric Material
Solid Polyethylene (SPE)
Dielectric Diameter
7.24mm ± 0.10
Screening 1
Plain Copper Wire Braid
Screening 1 Coverage
> 95% ± 3
Sheath Material
Low Smoke Non-Hologen (LSNH)
Sheath Colour
White
Mechanical Characteristics
Overall Diameter
10.3mm ± 0.20mm
Temperature Range
Fixed -30°C to +85°C
Bend Radius
10 x Overall Diameter
Weight
160 kg/km
Electrical Characteristics
Inner Conductor DC Resistance
≤ 21.0 Ω/km @ 20°C
Outer Conductor DC Resistance ≤ 4.3 Ω/km @ 20°C
Characteristic Impedance
75 Ω ± 3Ω
Nominal Capacitance
67 pF/m
Velocity of Propagation 66%
Insulation Resistance > 5000 MΩ*km
Maximum Operating Voltage 3.7 kV RMS
VSWR DC-1000MHz
< 1.20
Attenuation @20ºC
Frequency
(MHz)
Attenuation
(per 100m)
Frequency
(MHz)
 Attenuation
(per 100m)
50 4.5 dB
500 18.7 dB
100 9.2 dB
600 20.0 dB
200 9.6 dB
800 23.0 dB
 400  14.5 dB  1000  28.5 dB
