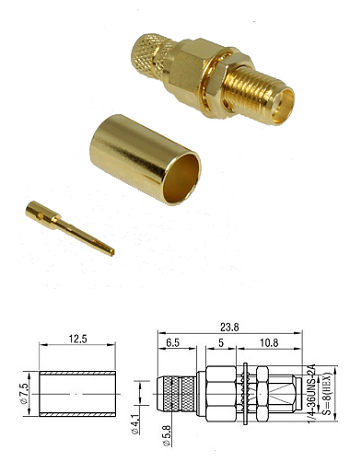

SMA Bulkhead Jack LMR240

(Code: 214-2544-070)
 Add to Enquiry List
SMA Bulkhead Jack LMR240Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Bronze, Gold Plated
Insulator - PTFE
Crimp Ferrule - Brass, Gold Plated

Electrical Characteristics
Impedance - 50 ohm
Frequency Range Max. - DC - 3GHz
Dielectric Withstanding Voltage - 1000V (RMS)
Contact Resistance - Centre ≤ 3mΩ, Outer ≤ 2.5mΩ
Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics
Mating - 1/4-36UNS-2A
Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155°C

Assembly
Pin: 1.72 mm hex
Outer: 6.48 mm hex
