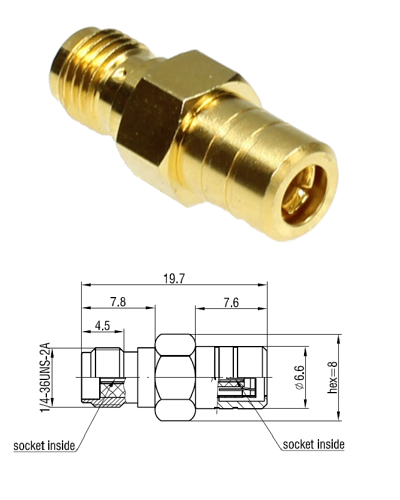

SMA Jack to SMB Plug

Materials & Plating

Shell/Body - Brass, Gold Plated

Conductor - Beryllium-copper, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 750V (RMS)

Contact Resistance - Centre ≤ 6mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics

Mating - SMA:1/4-36UNS-2A SMB: Snap-on coupling

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C
