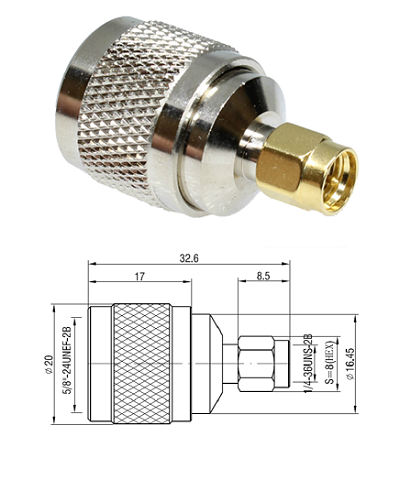

SMA Plug to N Type Plug Adaptor

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Nut - Brass, Nickel / Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 6GHz

Dielectric Withstanding Voltage -1000V (RMS)

Contact Resistance - Centre ≤ 3mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - N: 5/8-24UNEF-2B,SMA:1/4-36UNS-2B

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: -  55°C to +155°C
