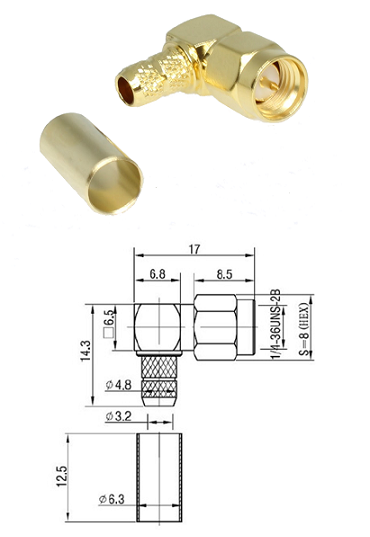

SMA Right-Angled Crimp Plug LMR200

(Code: 214-1520-070)
Add to Enquiry List
SMA Right-Angled Crimp Plug LMR200

Materials & Plating

Shell/Body - Brass, Gold Plated

Conductor - Brass, Gold Plated

Insulator - PTFE/ABS



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre ≤ 3mΩ, Outer ≤ 2mΩ

Insulation Resistance - ≥ 1000mΩ



Mechanical Characteristics

Mating - 1/4-36UNS-2B

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 55°C to +155°C



Assembly

Pin: Solder

Outer: 5.41 mm hex
