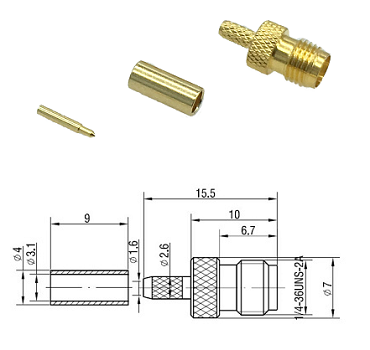

SMA-RP Crimp Jack RG174, 188A, 316, LMR100

Materials & Plating

Shell/Body - Brass, Gold Plated

Conductor - Brass, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre ≤ 3mΩ, Outer ≤2.5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - 1/4-36UNS-2A

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C

Assembly

Pin: Solder
Outer: 3.25 mm hex
