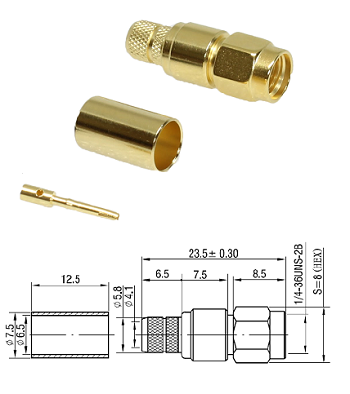

SMA-RP Crimp Plug LMR240 (Crimp Pin)

Materials & Plating

Shell/Body - Brass, Gold Plated

Conductor - Bronze, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 6GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre ≤ 3mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - ≥ 1/4-36UNS-2B

Durability - ≥500 cycle

Environmental Characteristics

Temperature Range: -  55°C to +155°C

Assembly

Pin: 1.72 mm hex

Outer: 6.48 mm hex
