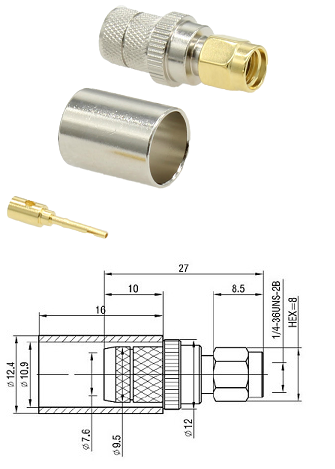

SMA-RP Crimp Plug LMR400

Materials & Plating

Shell/Body - Brass, NickelPlated

Conductor - Beryllium Copper, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre ≤ 3mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - 1/4-36UNS-2B

Durability - ≥500 cycle

Environmental Characteristics

Temperature Range: -  40°C to +85°C

Assembly

Pin: Solder

Outer: 10.9 mm hex
