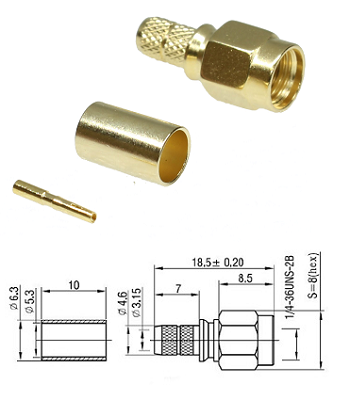

SMA-RP Crimp Plug RG58, LMR195

Materials & Plating

Shell/Body - Brass, Gold Plated

Conductor - Beryllium Copper, Gold Plated

Insulator - PTFE

Crimp Ferrule - Brass, Gold Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1000V(RMS)

Contact Resistance - Centre ≤ 3mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 5000mΩ


Mechanical Characteristics

Mating - 1/4”-36UNS-2B

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C


Assembly

Pin: Solder

Outer: 5.41 mm hex
