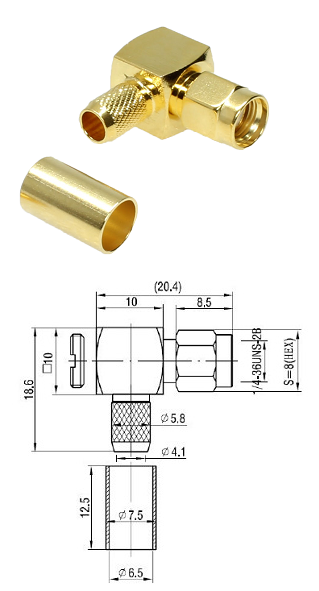

SMA-RP Right-Angled Crimp Plug LMR240

Materials & Plating

Shell/Body - Brass, Gold Plated

Conductor - Bronze, Gold Plated

Insulator - PTFE

Crimp Ferrule - Brass, Gold Plated



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 6GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre ≤ 3mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 5000mΩ



Mechanical Characteristics

Mating - 1/4”-36UNS-2B

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 55°C to +155°C



Assembly

Pin: Solder

Outer: 6.48 mm hex
