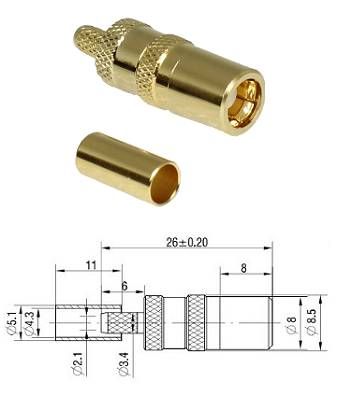

SMB 75 ohm Straight Plug SYV-75-2-2

Materials & Plating

Shell/Body - Brass, Gold Plated

Conductor - Beryllium, Gold Plated

Insulator - PTFE

Crimp Ferrule - Brass, Gold Plated



Electrical Characteristics

Impedance - 75 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre 6mΩ, Outer 1mΩ

Insulation Resistance - ≥1000mΩ,​​​​​​



Mechanical Characteristics

Mating - Snap-on coupling

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 55°C to +155°C



Assembly:

Pin: Solder

Outer: ​​​​​​​4.52 mm hex
