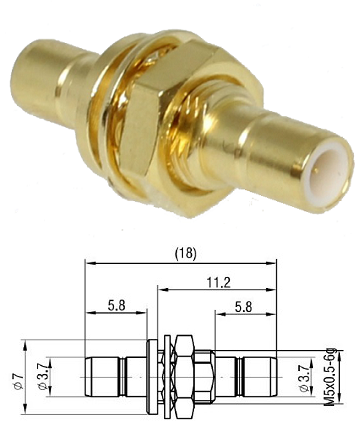

SMB Jack/Jack Bulkhead Adaptor

(Code: 215-8500-070)
Add to Enquiry List
SMB Jack/Jack Bulkhead Adaptor

Materials & Plating

Shell/Body - Brass, Gold Plated

Contact - Bronze, Gold Plated

Insulator - PTFE


Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1000V(RMS)

Contact Resistance - Centre ≤ 6mΩ, Outer ≤ 1mΩ

Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics

Mating - snap-on

Durability - ≥ 500 cycles


Environmental Characteristics

Temperature Range: - 55°C to +155°C
