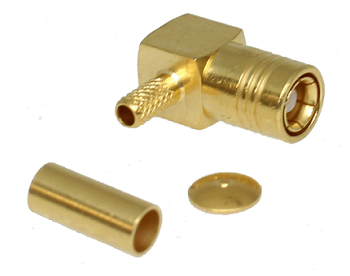

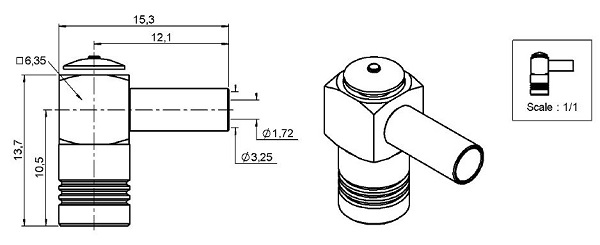

SMB Right-Angled Plug RG179 (Radiall)

Materials &Plating

Body - Brass,Gold 0.2 over Nickel 2

Centre Contact- Beryllium Copper, Gold 0.5 over Nickel 2

Outer Contact -Beryllium Copper, Gold 0.5 over Nickel 2

Insulator -PTFE

Gasket -

Other Parts -Brass, Gold 0.2 over Nickel 2

Electrical Characteristics
Impedance - 50Ω

Frequency - 0.4GHz

VSWR - 1.35 +0.040 x F(GHz) maxi

Insertion Loss- 0.5 √F(GHz) dB maxi

RF Leakage: - (57 - F(GHz)) dB max

Voltage rating- 335 Veff maxi

Dielectric Withstanding Voltage - 1000 Veff mini

Insulation Resistance - 1000 MΩ mini

Mechanical Characteristics

Centre Contact Retention

   Axial force – Mating end 10 N mini

   Axial force – Opposite end 10 N mini

   Torque - NA N.cm mini

Recommendation Torque

   Mating: NA N.cm

   Panel Nut: NA N.cm

   Clamp Nut: NA N.cm

   A/F Clamp Nut: 0.000 mm

Mating Life -500 cycles mini

Weight - 3.262g

Environmental

Operating Temperature - -65/+165°C

Hermetic Seal -NA Atm. cm3/s

Panel Leakage -NA
