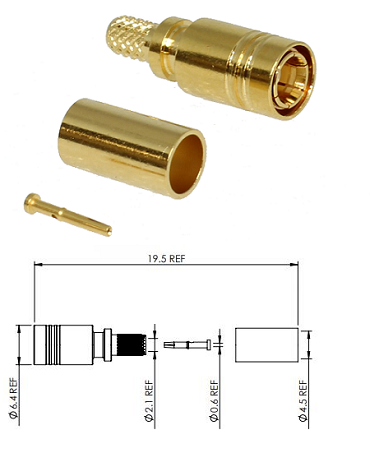

SMB Straight Plug (Indent Crimp) BT3002

Electrical Specification

Impedance: 75Ohm

Frequency: 0 - 4 Ghz

Dielectric W/V:

Insulation res: 1000 M-Ohm min

Mechanical Specification

Centre Contact Retention Axial Force: 17N min

Cable Retention: 150N min

Mating cycles: 500 min

Environmental Specification

Operating Temp: -65 to +165 Deg C

Assembly

Centre Contact: Indent DMC AFM8 (SEL. NO.1)

Positioner K1247S

Crimp Sleeve: Hex 4.52 A/F
