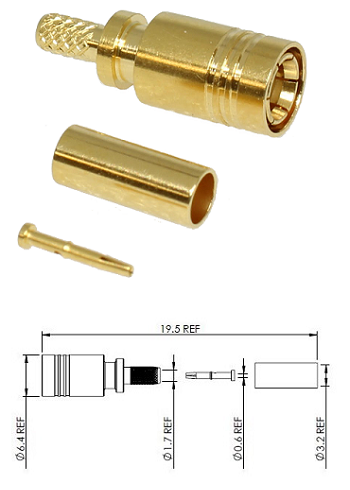

SMB Straight Plug (Indent Crimp) RG179

(Code: 215-1004-002)
 Add to Enquiry List
SMB Straight Plug (Indent Crimp) RG179

Electrical Specification

Impedance: 75 Ohm

Frequency:  0 - 4 Ghz

Dielectric W/V: -

Insulation res: 1000 M-Ohm min



Mechanical Specification

Centre contact retention Axial Force: 17N min

Cable Retention: 60N min

Mating cycles: 500 min



Environmental Specification

Operating Temp: -65 to +165 Deg C



Assembly

Centre Contact: Indent DMC AFM8 (SEL. NO.1)

Positioner K1247S

Crimp Sleeve: Hex 3.25 A/F
