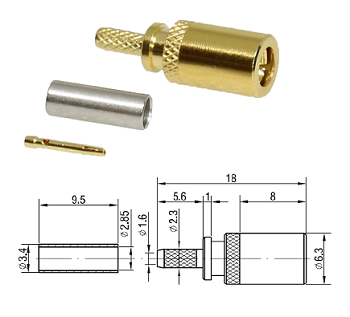

SMB Straight Plug RG178, RG196

Materials & Plating

Shell/Body - Brass, Gold Plated

Conductor - Beryllium, Gold Plated

Insulator - PTFE

Crimp Ferrule -  Brass, Nickel Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre ≤ 6mΩ, Outer ≤ 1mΩ

Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics

Mating - Snap-on coupling

Durability - ≥500 cycle

Environmental Characteristics

Temperature Range: -  55°C to +155°C

Assembly

Pin: Solder

Outer: 2.54 mm hex
