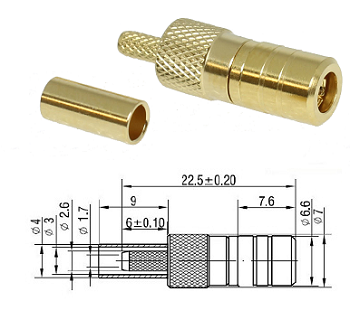

SMB Straight Plug RG179

Materials & Plating
Shell/Body - Brass, Gold Plated

Contact Socket - BERYLLIUM, Gold Plated

Insulator - PTFE

Crimp Ferrule - Brass, Gold Plated

Electrical Characteristics
Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1000V (RMS)

Contact Resistance - Centre ≤ 6mΩ, Outer ≤ 1mΩ

Insulation Resistance - ≥ 1000mΩ

Mechanical Characteristics

Mating - Snap-on coupling

Durability - ≥ 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155°C

Assembly

Pin: Solder

Outer: 3.25 mm hex
