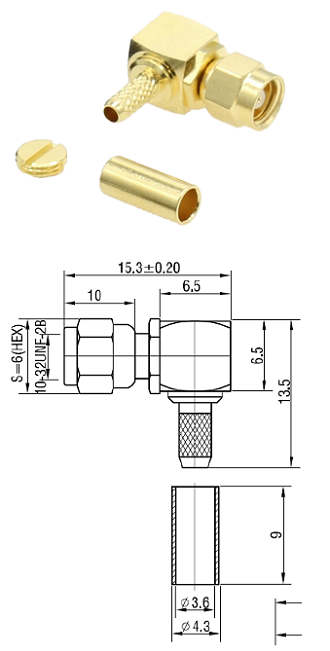

SMC Right-Angled Crimp Plug RG174, RG316

(Code: 221-1574-070)
Add to Quote
SMC Right-Angled Crimp Plug RG174, RG316

Materials & Plating

Shell/Body - Brass, Gold Plated

Conductor - Beryllium, Gold Plated

Insulator - PTFE


Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 2GHz

Dielectric Withstanding Voltage - 1000V(RMS)

Contact Resistance - Centre ≤ 6mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 5000mΩ


Mechanical Characteristics

Mating - Smc:10-32UNEF-2A

Durability - ≥ 500 cycles


Environmental Characteristics

Temperature Range: - 55°C to +155°C


Assembly

Pin: Solder

Outer: 3.25 mm hex
