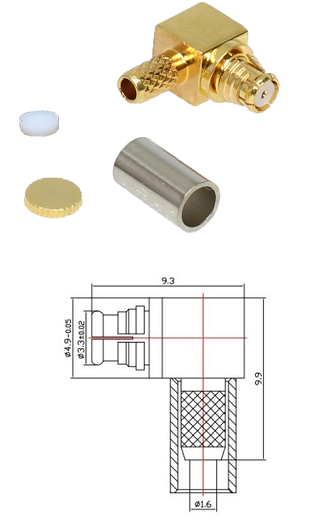

SMP Right-Angled Female RG316

(Code: 224-3074-130)
Add to Quote
SMP Right-Angled Female RG316

Materials & Plating

Shell/Body - Brass

Inner Conductor - Beryllium Bronze

Outer Conductor - Brass

Snap Ring - Beryllium Bronze

Crimping Suite - Beryllium Bronze

Electrical Characteristics

Impedance - 50 ohm

Temperature Range: - 40°C to +85°C

Frequency Range Max. - DC - 3GHz

VSWR - ≤1.20

Cable - RG316

Durability -500cycles

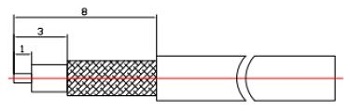

Assembly

Pin: Solder

Outer: 3.48 mm hex
