Spiral Wrap

(Code: CSWX)
 Add to Enquiry List

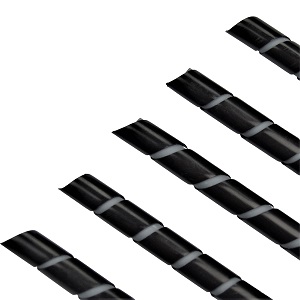

Spiral Wrap



Our Spiral Wrap is a halogen free, flexible, polyolefin sleeve. It is low smoke generating,abrasion resistant and in case of burning produces no dioxin. It has excellent electrical and physical properties.


Colours Available:Black & Clear


Technical Specification
Material Polyethylene
Standard UL Approved
Working Temp

-30ºC to +100ºC
ROHS Compliant Yes
Zero Halogen Yes


Spiral Wrap
Stock Code  ID  OD  Thickness  Bundle Reel Size

CSW4+COLOUR

 4mm
 4mm 0.6mm 4-10mm
 25M

CSW6+COLOUR

 5mm
 6mm 0.6mm 7-10mm
 25M

CSW8+COLOUR

 6.7mm
 8mm
 0.65mm 8-80mm
 25M
CSW10+COLOUR
 8.7mm 10mm 0.65mm 10-100mm
 25M
CSW12+COLOUR
 10.6mm
 12mm
 0.70mm 12-120mm
 25M
CSW14+COLOUR
 12.5mm
 14mm
 0.75mm 14-140mm
 25M
CSW16+COLOUR
 14.5mm
 16mm
 0.78mm 16-160mm
 25M
CSW20+COLOUR
 17.8mm
 20mm
 1.10mm 20-200mm
 25M
CSW22+COLOUR
 20mm 22mm 1.10mm 22-220mm
 25M
