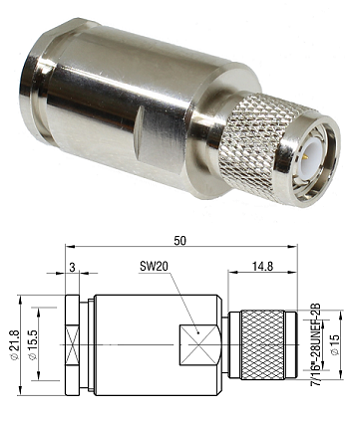

TNC Clamp Plug LMR600

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - PTFE

Nut - Brass, Nickel Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC -2GHz

Dielectric Withstanding Voltage - 1500V (RMS)

Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating -  7/16-28UNEF-2B

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85°C
