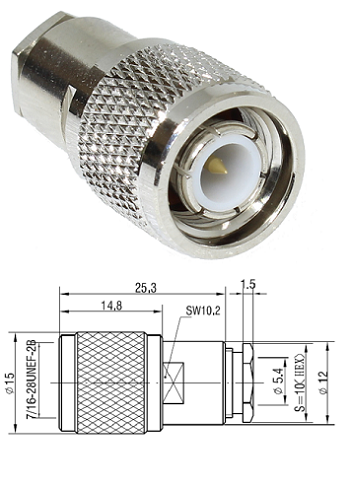

TNC Clamp Plug Rg58

(Code: 213-1158-070)
Add to Enquiry List
TNC Clamp Plug Rg58

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - PTFE





Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC -2GHz

Dielectric Withstanding Voltage - 1500V (RMS)

Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 5000mΩ



Mechanical Characteristics

Mating -  7/16-28UNEF-2B

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 40°C to +85°C
