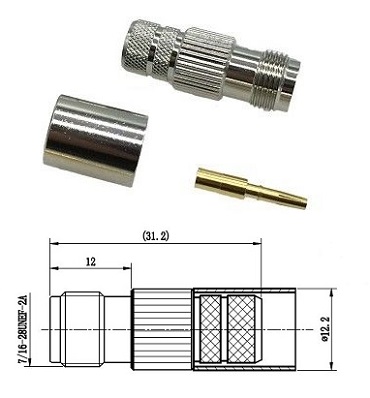

TNC Crimp Jack LMR400

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - PTFE

Other - Brass, Nickel Plated



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

VSWR - ≤ 1.25 (DC - 3GHz)

Insulation Resistance - ≥ 5000mΩ

Contact Resistance - Centre ≤ 1.5mΩ, Outer ≤ 1mΩ



Mechanical Characteristics

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: -45℃～+85℃

Assembly

Pin: 2.54 mm hex

Outer: 10.9 mm hex
