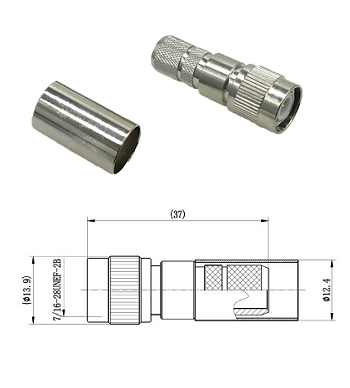

TNC Crimp Plug LMR400 Easy-Fit

Material and Plating

Body - Brass, Nickel Plated

Insulator - PTFE

Centre Conductor - Phosphor, Gold Plated

Electrical

Characteristic Impedance - 50 ohm

Frequency Range - 0.3-GHz

VSWR - ≤1.20

Dielectric Withstanding Voltage - ≥1500V RMS,50Hz,at sea level

Dielectric Resistance - ≥5000MΩ

Contact Resistance - Centre Contact ≤1.5mΩ, Outer Contact≤0.4mΩ

Mechanical

Durability - Mating cycles ≥500 cycles

Environmental

Temperature Range - -40℃～+85℃

RoHS Compliance - Full ROHS compliance
