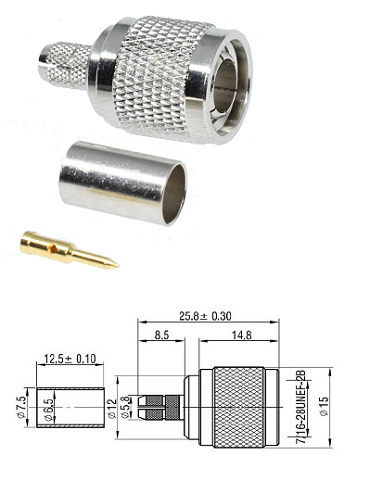

TNC Crimp Plug RG59

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Silver Plated

Insulator - PTFE

Crimp Ferrule - Brass, Nickel



Electrical Characteristics

Impedance - 75 ohm

Frequency Range Max. - DC - 3 GHz

Dielectric Withstanding Voltage - 1500V (RMS)

Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 5000mΩ



Mechanical Characteristics

Mating - 5/8-24UNEF-2B

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 40°C to +85°C



Assenbly

Pin: 1.72 mm hex

Outer: 6.48 mm hex
