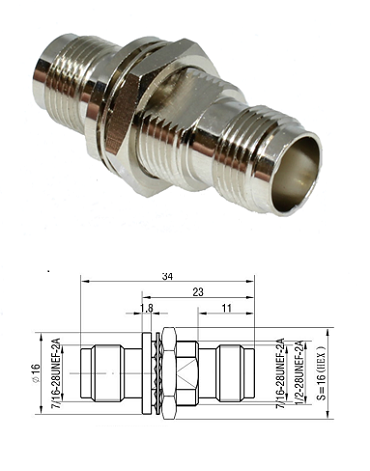

TNC Jack/Jack Bulkhead Adaptor

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Contact socket - Bronze, Gold Plated

Insulator - ABS
NUT - Brass, Nickel Plated
Washer - Phosphor Bronze, Nickel Plated

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1500V (RMS)

Contact Resistance - Centre ≤ 1.5mΩ, Outer ≤ 1mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - bayonet lock

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: -40°C to +85°C
