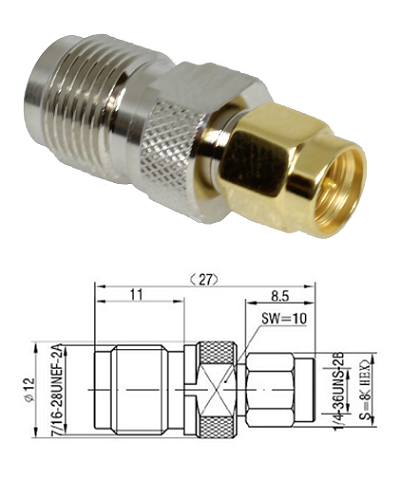

TNC Jack to SMA Plug (Gold)

(Code: 290-5021-070)
Add to Enquiry List
TNC Jack to SMA Plug (Gold)

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Bronze, Gold Plated

Insulator - PTFE

Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 500V(RMS)

Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 5mΩ

Insulation Resistance - ≥ 5000mΩ

Mechanical Characteristics

Mating - TNC:7/16-28UNEF-2A SMA:1/4-36UNS-2B

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 40°C to +85 °C
