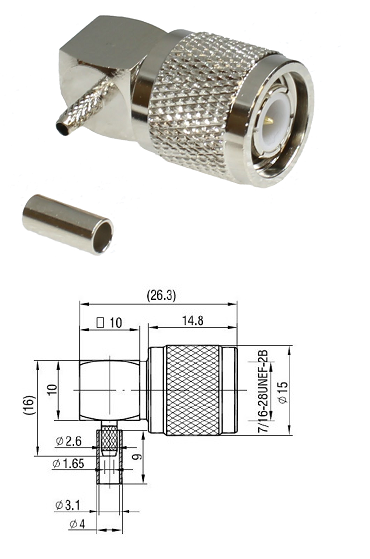

TNC Right-Angled Crimp Plug Rg174, RG316

Materials & Plating

Shell/Body - Brass, Nickel Plated

Contact Pin - Brass, Gold Plated

Insulator - PTFE

Crimp Ferrule - Brass, Nickel Plated



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1500V (RMS)

Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 5000mΩ



Mechanical Characteristics

Mating - 7/16-28UNEF-2B

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 55°C to +155°C

Assembly

Pin: Solder

Outer: 3.25 mm hex
