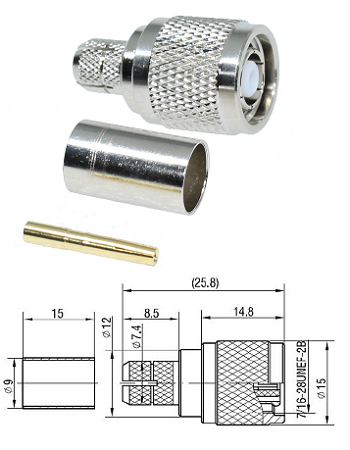

TNC RP Crimp Straight Plug LMR300 (solder pin)

Materials & Plating
Shell/Body - Brass, Nickel Plated
Conductor - Bronze, Gold Plated
Insulator - PTFE
Crimp Ferrule - Brass, Nickel Plated

Electrical Characteristics
Impedance - 50Ω
Frequency Range Max. - DC - 3GHz
Dielectric Withstanding Voltage - 1500V (RMS)
Contact Resistance - Centre 10mΩ, Outer 2.5mΩ
Insulation Resistance - 5000mΩ

Mechanical Characteristics
Mating - 7/16-24UNEF-2B
Durability - 500 cycles

Environmental Characteristics
Temperature Range: - 55°C to +155 °C

Assembly:
Pin: Solder
Outer: 7.9 mm hex
