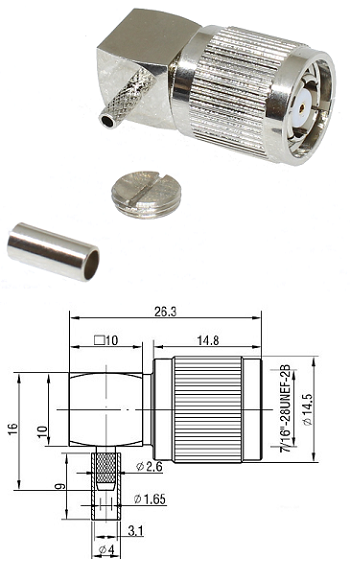

TNC-RP Right-Angled Crimp Plug RG174, RG188, RG316, LMR100

(Code: 213-1574RP-070)
Add to Enquiry List
TNC-RP Right-Angled Crimp Plug RG174, RG188, RG316, LMR100

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Beryllium, Gold Plated

Insulator - PTFE

Crimp Ferrule - Brass, Nickel Plated



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 3GHz

Dielectric Withstanding Voltage - 1500V (RMS)

Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 5000mΩ

VSWR - ≤4IL - ≤1.2dB

Mechanical Characteristics

Mating - 7/16-28UNEF-2B

Durability - ≥ 500 cycles



Environmental Characteristics

Temperature Range: - 55°C to +155°C



Assembly

Pin: Solder

Outer: 3.25 mm hex
