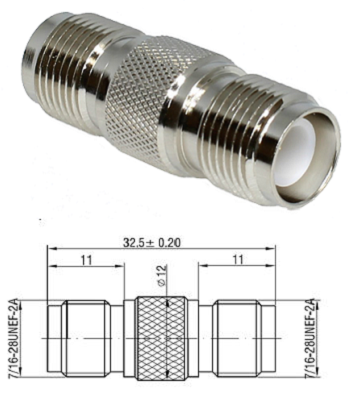

TNC-RP Straight Jack/Jack Adaptor

(Code: 213-8000RP-070)
Add to Enquiry List
TNC-RP Straight Jack/Jack Adaptor

Materials & Plating

Shell/Body - Brass, Nickel Plated

Conductor - Brass, Gold Plated

Insulator - TEFLON



Electrical Characteristics

Impedance - 50 ohm

Frequency Range Max. - DC - 5.85 GHz

Dielectric Withstanding Voltage - 1500V (RMS)

Contact Resistance - Centre ≤ 10mΩ, Outer ≤ 2.5mΩ

Insulation Resistance - ≥ 5000mΩ

VSWR - ≤1.4

IL - ≤0.2 2dB



Mechanical Characteristics

Mating - TNC:7/16-28UNEF-2A

Durability - ≥ 500 cycles

Environmental Characteristics

Temperature Range: - 55°C to +155°C
