Tower Leg or Pipe Adaptor

(Code: BPAXXmm)
 Add to Enquiry List
Tower Leg or Pipe Adaptor

Details

Used when tower legs or steel work must ‘not’ be drilled again after galvanising. Suitable for

use with either single or double interlocking clamps. Can also be used on any flat

surface such as angle iron etc. Leg or pipe attaching the adaptor should be less than 50mm

for BPA25mm and greater than 50mm for BPA50mm+.

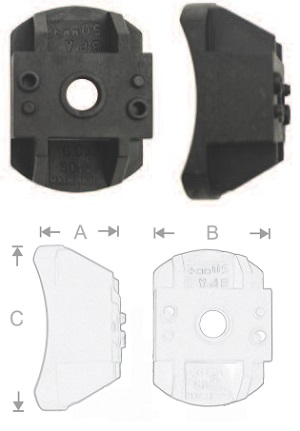

 Stock Code Colour Pipe/Tower Leg Dia. Nut Size A   B C  Weight  Pack Qty Box Qty
 BPA25mm Black Up to 45/50mm M10 30 44 62  0.02  25  500
 BPA50mm+ Black
 Over 45/50mm M10 30
 44 62  0.03  25  500
 BPA50+6 Black
 Over 45/50mm
 M6 30
 44 62  0.03  25  500
 SGPA50mm+ Grey Over 45/50mm
 M10 30
 44 62   0.03  25  500
 SGPA50+6 Grey Over 45/50mm
 M6 30
 44 62  0.03  25  500

Bolt hole Size: M10 or M6
Material: Polypropylene
